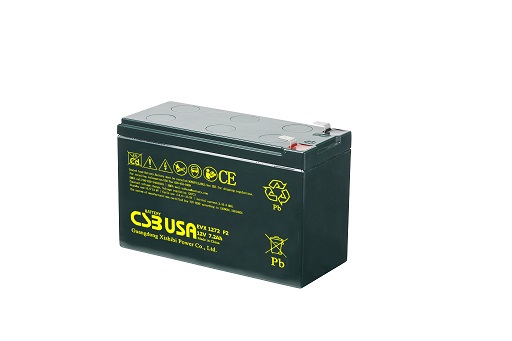

EVX1272（12V7.2Ah)
EVX 1272 is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life.
|
安培数
|
7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
|
|
重量(kg)
|
Approx. 2.55kg. (5.62 lbs.)
|
|
最大放电电流5秒(A)
|
100A/130A (5 sec)
|
|
温度工作范围
|
Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
|
|
一般使用温度工作范围
|
25°C ± 3°C (77°F ± 5°F)
|
|
浮充使用充电条件
|
13.5 to 13.8 VDC/unit Average at 25°C (77°F)
|
|
均充使用充电条件
|
14.4 to 15.0 VDC/unit Average at 25°C (77°F)
|
|
自放电
|
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
|
|
端子
|
F1/F2-Faston Tab187/250
|
